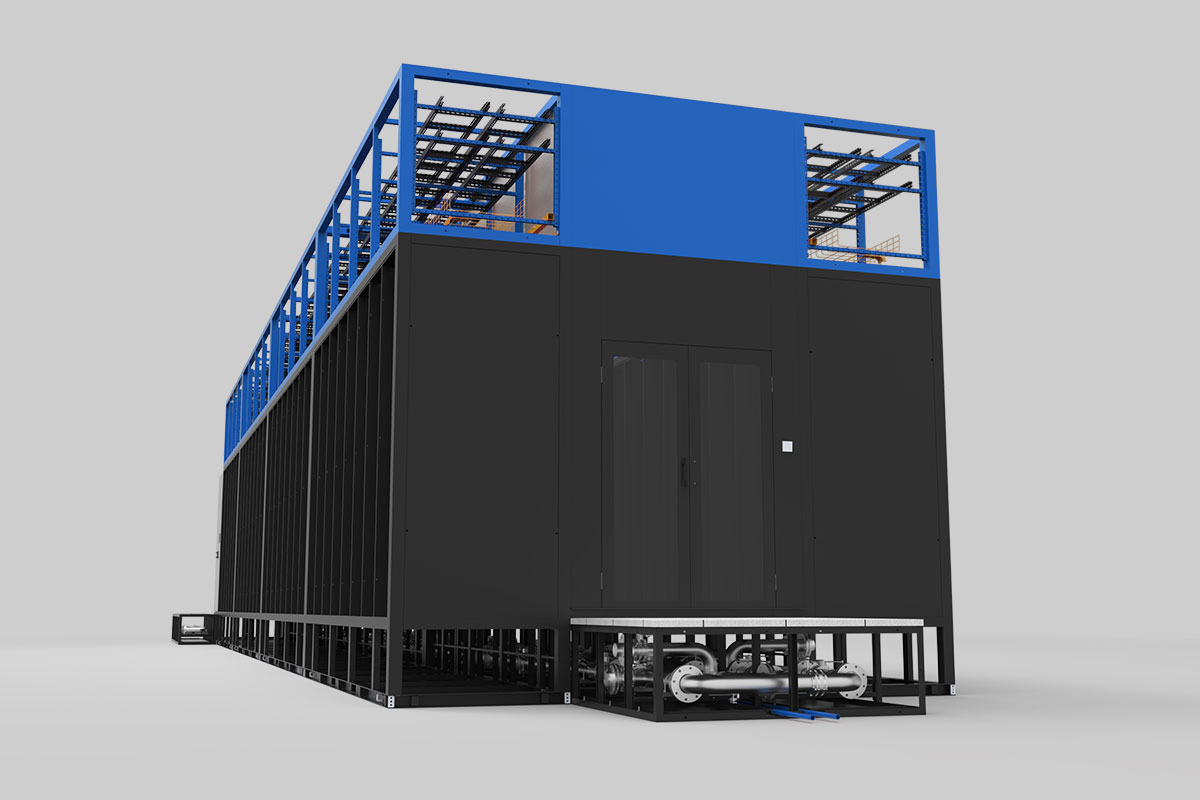

PREFABRICATED PRY ASSEMBLY SOLUTION
PREFABRICATED LIQUID-COOLED DATA CENTER
This solution eliminates the need for traditional air conditioning systems to cool servers, Significantly reducing energy consumption and lowering Power Usage Effectiveness (PUE).By directly circulating coolant through the servers, the liquid cooling mechanism achieves superior thermal management, enabling stable operation of high-power-density server configurations.The system's design allows for scalable increases in server capacity and deployment density to meet growing computational demands, while maintaining energy efficiency and operational reliability

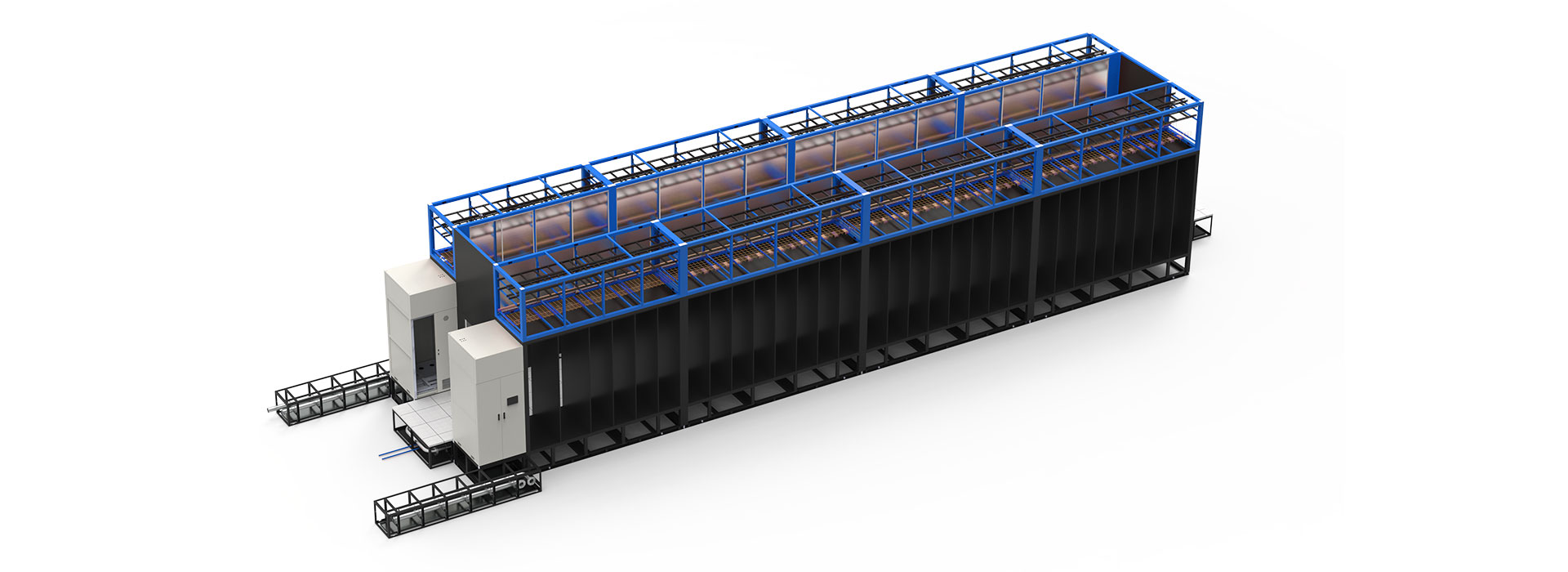

SINGLE-COLUMN CHANNEL EFFECT

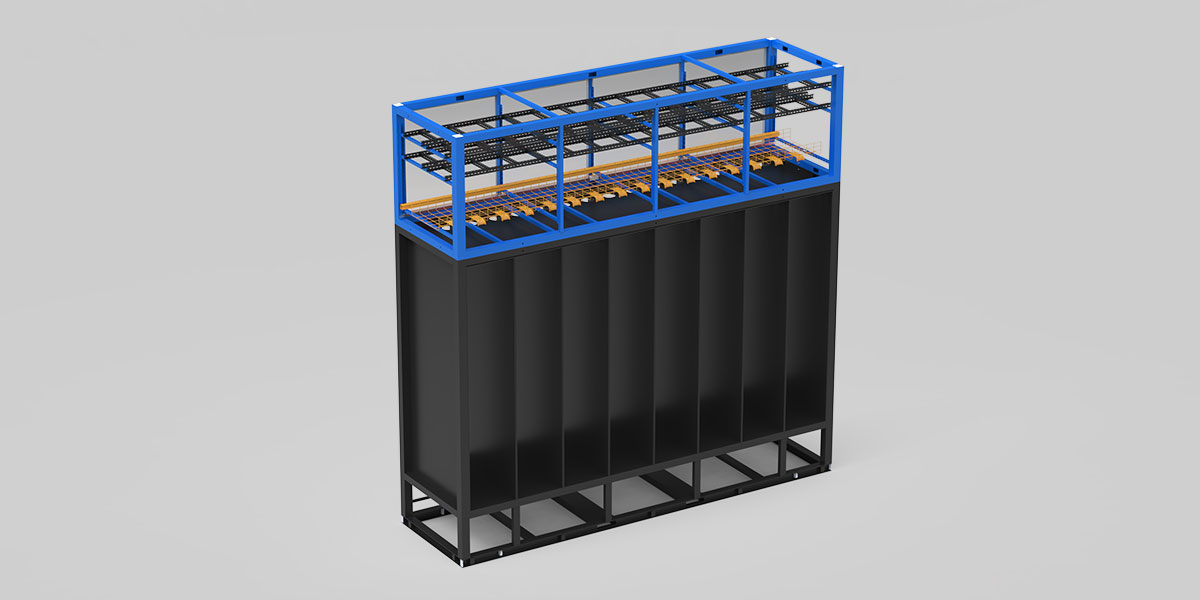

- 1The channel is productized, assembled on-site with multiple modules, and the overall structure is fully prefabricated with optimized design; it is arranged with fine optimization based on the actual purchased dimensions of the equipment
- 2The prefabrication of each module in the factory reduces the amount of on-site construction work and shortens the delivery time; meanwhile, a large amount of technical integration is completed in the factory, greatly improving on-site efficiency
- 3Raw materials are standardized, with rectangular pipes as the main framework, reducing the material procurement cost.

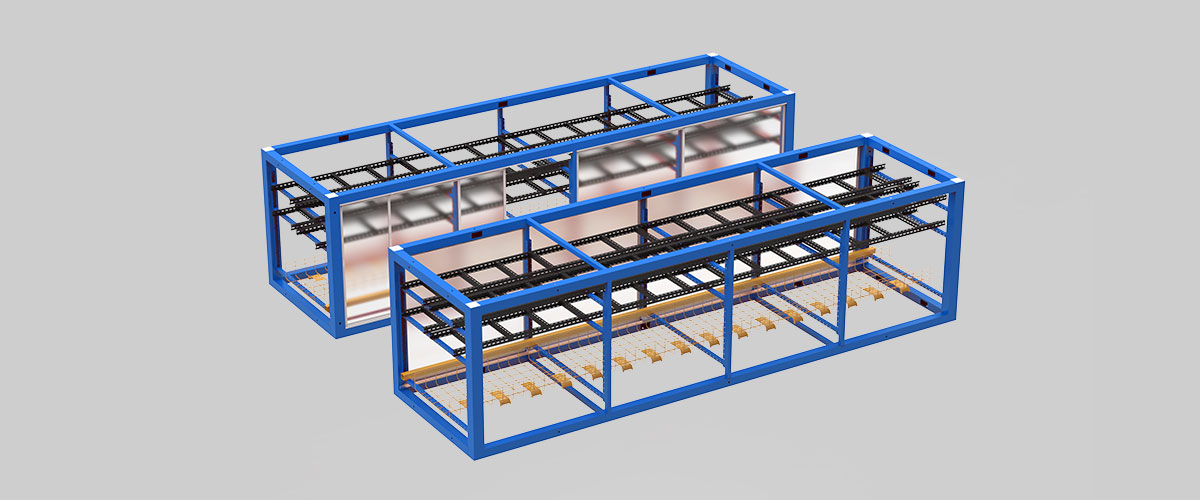

CABLE TRAY MODULE
It integrates a hot aisle containment component with an internal multi-layer bridge design, where the main structure of the containment component cleverly combines plastic panels with a sturdy aluminum frame
- 1Not only has it achieved effective isolation of cold and hot aisles, but it also cleverly serves as a maintenance window, facilitating the maintenance and management of the intricate strong and weak electrical cables on the bridge.
- 2The cable tray is divided into strong elevator-shaped trays and weak electrical grid trays, each performing its own function and jointly undertaking the task of laying cables.
- 3The specific dimensions and quantity configurations can be flexibly adjusted according to the needs of the actual application scenarios to meet the installation and usage requirements.
IT Module
The IT Module and the bridge skid achieve prefabricated centralized deployment and installation of cabinet equipment by integrating the server cabinet and the bridge into their respective skid frames
- 1The innovative design not only avoids the scattered and disorderly installation of components inside the computer room, but also significantly enhances the integration of the system while improving the overall aesthetics.
- 2This modular design greatly facilitates the transportation and on-site installation process of the product, effectively improves construction efficiency, and significantly shortens the construction period.
- 3It ensures the consistency and aesthetics of the internal environment of the computer room, providing users with a cleaner and more efficient operation and maintenance experience.
CHANNEL DOOR ASSEMBLY
- 1The hot aisle sliding door features a manually operated design for intuitive access, equipped with a 4mm-thick polycarbonate (PC) panel viewing window. The door panel achieves a maximum opening angle of 120 degrees, facilitating daily access and maintenance.
- 2Front-facing 86-type switch mounting holes(standard Chinese electrical box specifications) are preconfigured, while the rear incorporates a camera mounting bracket, enabling flexible security and monitoring configurations tailored to specific scenarios.
- 3Entirely prefabricated at the factory and shipped as a complete unit, the door requires only four bolts to secure it to the IT Skid Module on-site, enabling rapid installation that significantly reduces deployment time and costs.
